- Place of Origin:CN;ZHE
- Nominal Voltage:1.5V
- Brand Name:3G/ OEM
- Size:AA
- Nominal Capacity:≥250min; ≥300min; ≥340min;≥380min
- Battery Type:Zn/MnO2
- Model Number:AA/UM-3/LR6

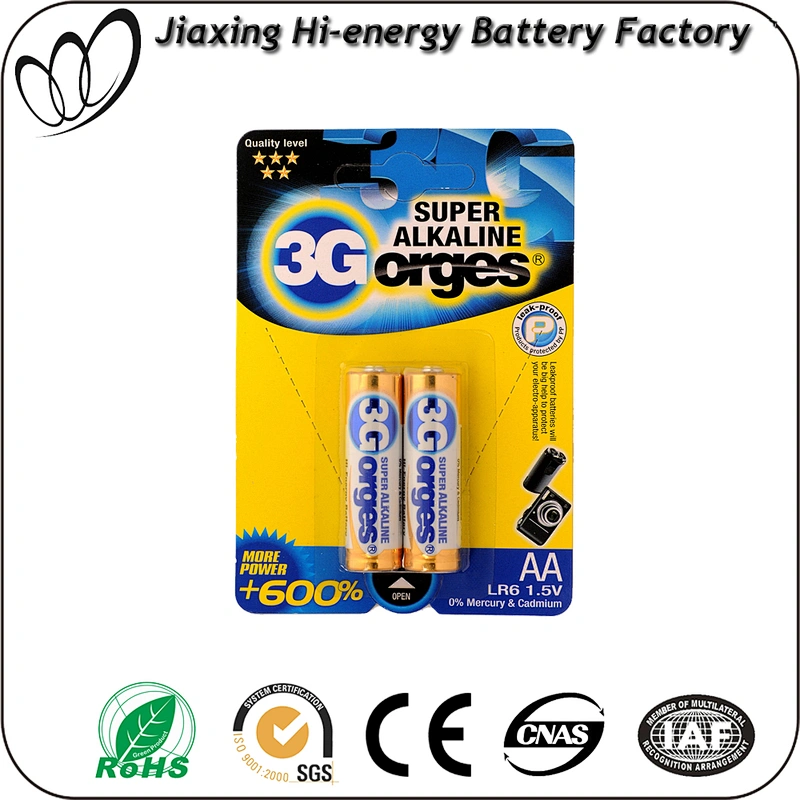

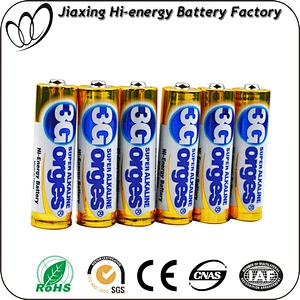

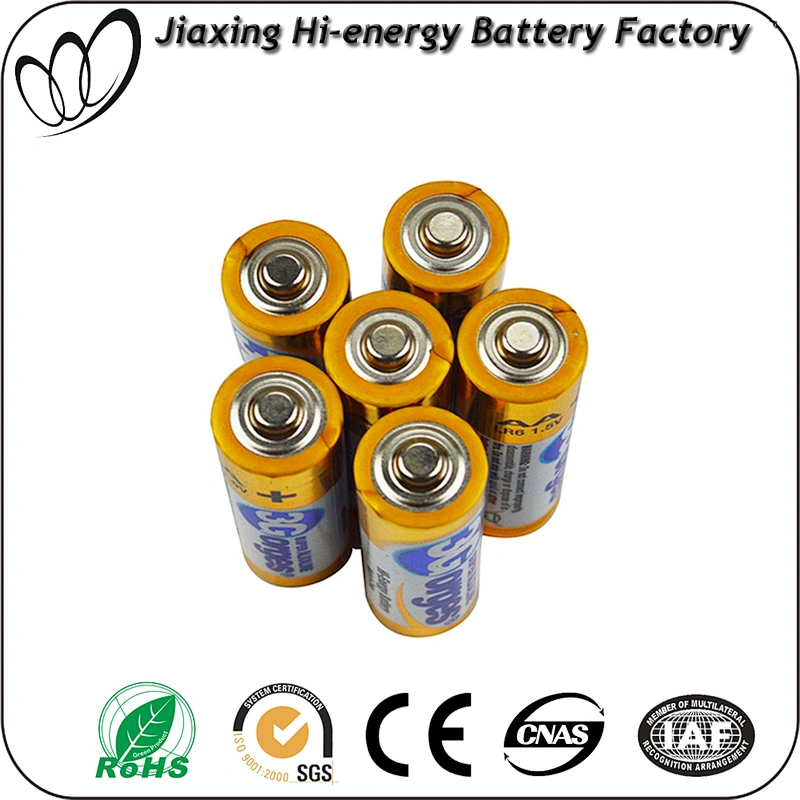

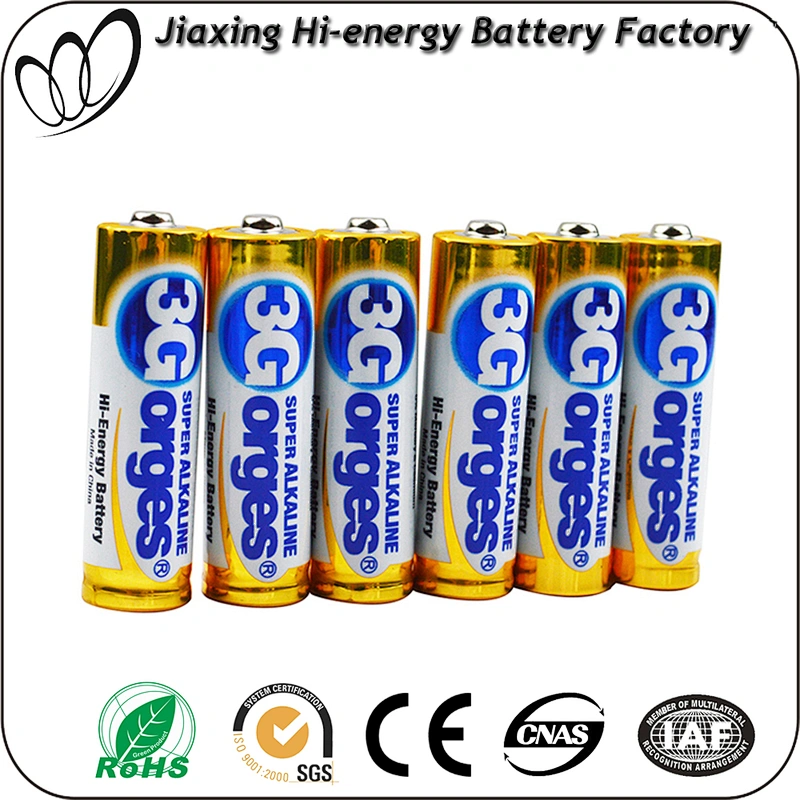

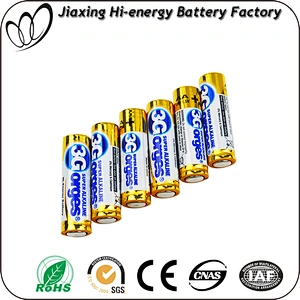

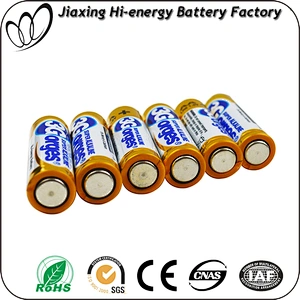

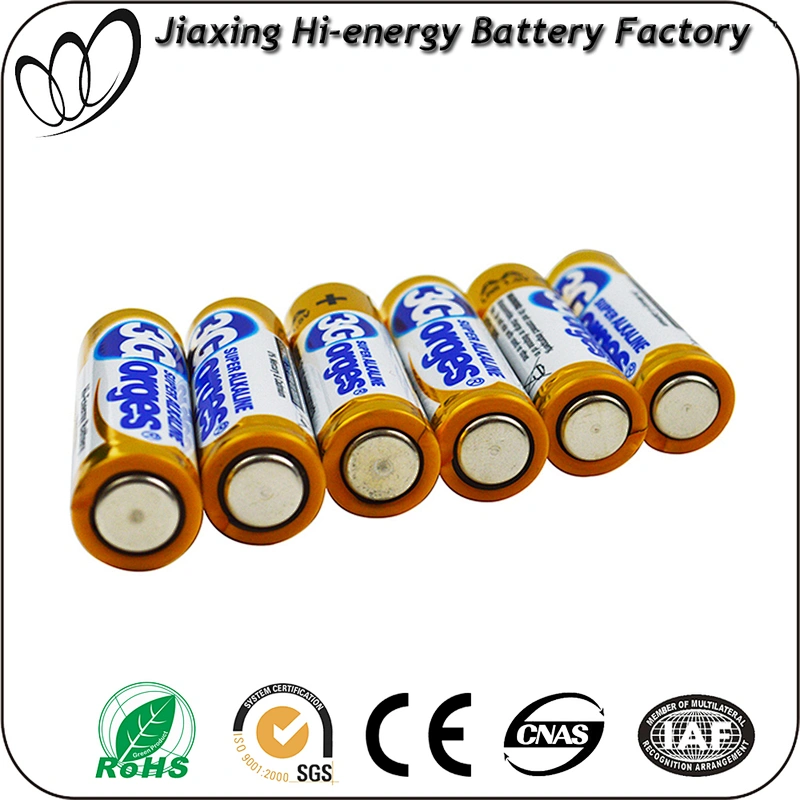

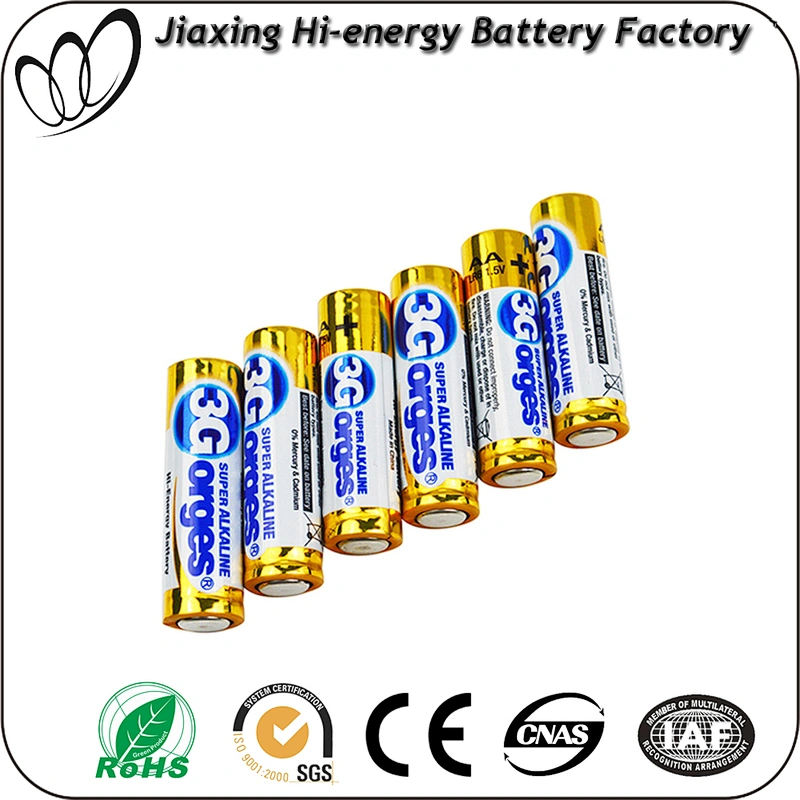

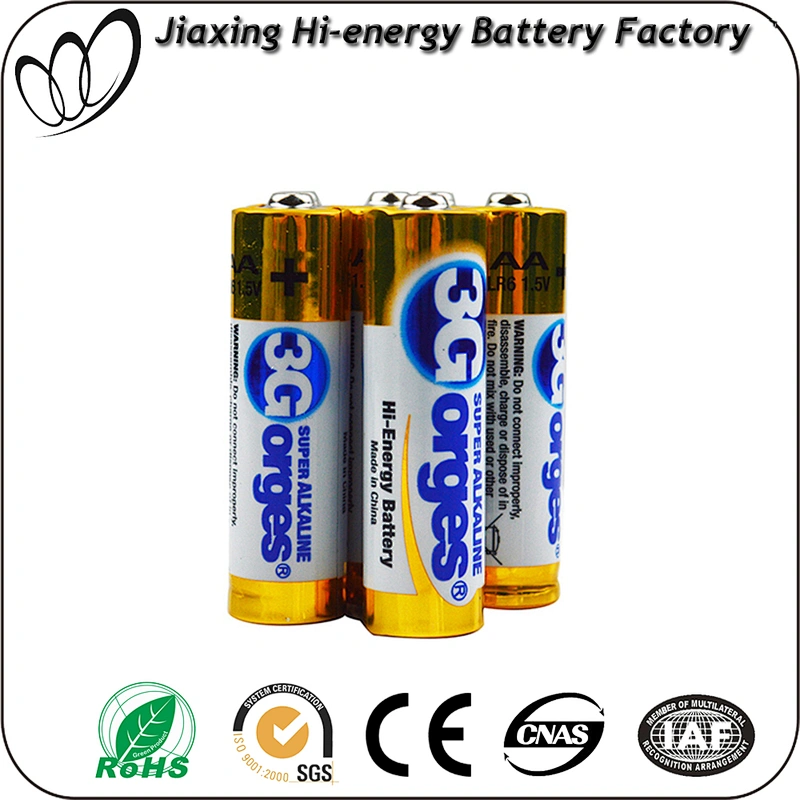

LR6/AM3 battery
| Product name | LR6/AM3 battery |
| Chemical System | 1.5v alkaline dry battery |
| Standard | IEC standard ,ROHS, EU battery direction 2006/66/EC. |
| Nominal voltage | 1.5V |
| Size | AA |
| Jacket | Aluminum Foil |
| heavy Metal Content | Hg<1ppm,Cd<10ppm,pb<30ppm |
| Shelf life | 3 years |
1.Electrical Requirement
O.C.V Min 1.350 V Max 1.650 V
C.C.V >1.450V
After 0.2 sec +/- 0.01 sec by R=5.0Ω
2.Service Life :
Discharge test result as follow (condition: +20°C+/-2°C and 60+/-15% RH).
Test condition | Duration |
1.8Ω, 15s/min,24h/d,0.9V | 600times |
3.9Ω, 1h/d,0.8V | 6.9h |
10Ω,1h/d,0.9V | 18.5h |
43Ω,1h/d,0.8V | 89h |
3.9,24h/d,0.9V | 350min |
3. Leakage Resistance & Safety Requirement Test
Discharge test | Test condition :+20℃+/-2℃ , 60+/-15% RH Load Resistance(+/-0.5%) : 10Ω Discharge method :48 hours continuance discharge | No leakage |
High heat and humidity storage test | High Temperature Exposure When exposed to a temperature of 60 +/-2 ℃,60+/-15% RH for a period of 20days | No leakage |
Short Circuit Test
| Test number :10 pcs Test condition:+20℃+/-2℃,60+/-15% RH Test method:Short in the normal temperature for 24 hours |
The cathode should not separate from the battery
|
